The Mercedes-Benz Sprinter Cab Chassis is an adaptable and strong platform tailored to many commercial applications, from service vehicles to RVs. A description of the specifications of the 2025 Sprinter Cab Chassis 4500 follows:
Powertrain:
- Engine: 4-cylinder Diesel High Output
- Displacement: 1950 cc
- Horsepower: 211 hp
- Torque: 332 lb-ft
- Transmission: 9G-TRONIC Automatic
- Drive Type: Rear-wheel drive (RWD)
- Fuel Type: Diesel
- Emission Certification: SULEV
- Fuel Injection: Common-rail direct injection (CDI)
Dimensions:
- Overall Height: 94 inches
- Overall Length: 273 inches
- Overall Width (with mirrors): 96 inches
- Wheelbase: 170 inches
Capacities:
- Payload Capacity: 7,418 lbs
- Gross Vehicle Weight Rating (GVWR): 12,125 lbs
- Gross Combined Weight Rating (GCWR): 15,249 lbs
- Towing Capacity: 7,500 lbs
- Fuel Tank Capacity: 24.5 gallons
- Seating Capacity: 2-3 occupants
Key Features:
- Turning Diameter (Curb to Curb): 52.5 feet
- Frame Height (Unladen): 32.3 cm
- Frame Width (Outer to Outer): 44 cm
- Front Overhang: 15.8 inches
- Rear Overhang: 63 inches
- Front Tire Track: 66.3 inches
- Rear Tire Track: 60.7 inches

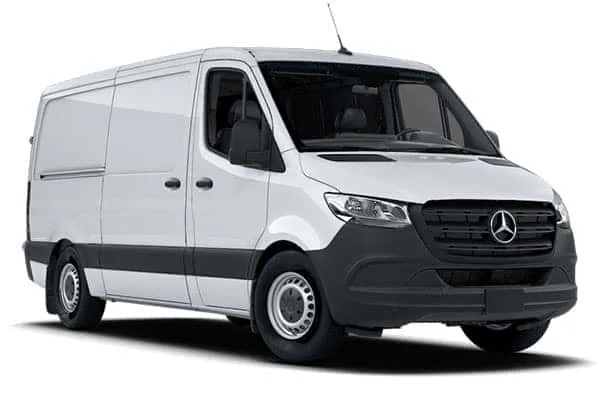

Sprinter Cargo Van
The Sprinter cargo van from Mercedes-Benz is one of the most versatile, efficient, and advanced commercial vehicles, featured on the list of best models, owing to its various applications. Herein outlined, however, are the exact specifications and key features of its 2025 model:
Powertrain:
- Engine Options: 4-Cylinder Diesel Standard Output
- Displacement: 1,950 cc
- Horsepower: 170 bhp at 3,800 rpm
- Torque: 295 lb-ft at 1,400-2,400 rpm
- 4-Cylinder Diesel High Output
- Displacement: 1,950 cc
- Horsepower: 211 bhp at 3,800 rpm
- Torque: 332 lb-ft at 1,400-2,400 rpm
- Transmission: 9G-TRONIC Automatic
- Drivetrain: Rear-wheel drive (RWD)
- Fuel Type: Diesel
- Emission Certification: SULEV
Dimensions:
- Overall Length: 234 inches
- Overall Width (with mirrors): 92 inches
- Overall Height: 107 inches
- Wheelbase: 144 inches
- Cargo Bed Length: 133 inches
- Interior Standing Height: 79 inches
- Cargo Volume: 374 cubic feet
- Payload Capacity: 4,134 lbs
- Maximum Towing Capacity: 5,000 lbs
- Gross Vehicle Weight Rating (GVWR): 9,050 lbs
- Fuel Tank Capacity: 24.5 gallons
- Gross Combined Weight Rating (GCWR): 15,249 lbs
- Towing Capacity: 7,500 lbs
- Fuel Tank Capacity: 24.5 gallons
- Seating Capacity: 2-3 occupants
Key Features:
- Turning Diameter (Curb to Curb): 52.5 feet
- Frame Height (Unladen): 32.3 cm
- Frame Width (Outer to Outer): 44 cm
- Front Overhang: 15.8 inches
- Rear Overhang: 63 inches
- Front Tire Track: 66.3 inches
- Rear Tire Track: 60.7 inches
Sprinter Crew Van
The Mercedes-Benz Sprinter Crew Van is a highly flexible vehicle catering to passenger and cargo-carrying needs. Specifications for the 2025 year model are as follows:
Engine and Performance:
- Engine Type: 2.0L Four-Cylinder Turbo Diesel
- Displacement: 1,950 cc
- Horsepower: 211 hp @ 3,800 RPM
- Torque: 332 lb-ft @ 1,400 RPM
- Transmission: 9G-TRONIC Automatic
- Drivetrain: Rear-wheel drive (RWD)
Dimensions and Capacities:
- Overall Length: 274.3 inches (6,967 mm)
- Overall Width: 92 inches (2,337 mm)
- Overall Height: 107.3 inches (2,725 mm)
- Wheelbase: 170 inches (4,318 mm)
- Cargo Volume: Up to 396 cu ft (11,213 liters)
- Payload Capacity: Approximately 3,362 lbs (1,525 kg)
- Towing Capacity: Up to 5,000 lbs (2,268 kg)
- Fuel Tank Capacity: 24.5 gallons (92.7 liters)
Interior Features
- Seating Capacity: 5 passengers
- Interior Height: 77 inches (1,956 mm)
- Cargo Bed Length: 144 inches (3,658 mm)
- Standard Features: Air conditioning, power windows, an adjustable steering column, and a multifunction steering wheel.
Sprinter Passenger Van
The Mercedes-Benz Sprinter Crew Van is a highly flexible vehicle catering to passenger and cargo-carrying needs. Specifications for the 2025 year model are as follows:
Engine and Performance:
Engine Options:
- 0L 4-Cylinder Gasoline Engine
- 0L 4-Cylinder Turbo Diesel Engine
- 0L V6 Turbo Diesel Engine
Horsepower:
- 0L Gasoline: 188 hp
- 0L Diesel: 170 hp
- 0L Diesel: 188 hp
Torque:
- 0L Gasoline: 258 lb-ft
- 0L Diesel: 295 lb-ft
- 0L Diesel: 325 lb-ft
- Transmission: 9-speed automatic
- Drivetrain: Rear-wheel drive (RWD)
Dimensions and Capacities:
- Overall Length: 233.5 inches
- Overall Width (with mirrors): 92 inches
- Overall Height: 113.5 inches
- Wheelbase: 144 inches
- Seating Capacity: Up to 15 passengers
- Cargo Volume: Up to 319 cubic feet
- Payload Capacity: Up to 3,197 lbs
- Towing Capacity: Up to 5,000 lbs

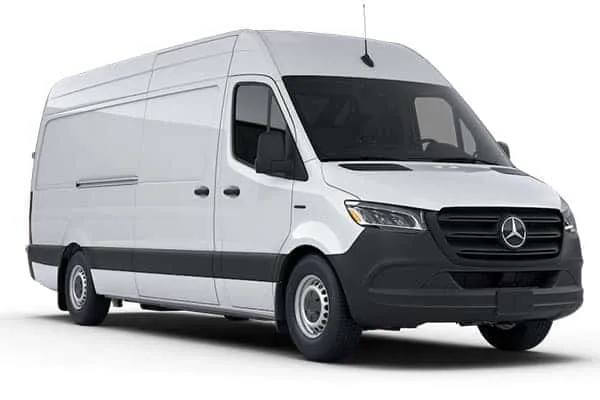

eSprinter Cargo Van
The Mercedes-Benz eSprinter Cargo Van is an all-electric vehicle developed for modern companies that want sustainable transportation. The combination of the practicality of the conventional Sprinter with cutting-edge electric technology ensures that the eSprinter provides impressive range and cargo space along with safety and comfort features that make it quite apt for use in urban deliveries and commercial applications.
Powertrain and Performance:
- Motor: Permanent magnet synchronous motor with the two power level options available, either 100 kW or 134 hp or 150 kW or 201 hp, with torque capabilities above 295 lb-ft.
- Battery Types: 113 kWh lithium iron phosphate battery; an 81 kWh battery option is on the drawing board to be introduced for the shorter wheelbase models.
- Top speed is electronically limited to a maximum speed of 75 mph.
- Modes: Three selectable drive modes as follows: Comfort mode (full performance), Economic mode (engine power reduced), and Maximum Range (output and features further limited) to achieve efficient driving.
- Regenerative Braking: Five levels of recuperation (D-, D, D+, D++, and D Auto) optimize energy recovery during braking.
Dimensions and Capacity:
- Length: 280.4 inches;
- Wheelbase: 170 inches;
- Width: 92.3 inches (with mirrors), 79.5 inches (without mirrors);
- Height: 107.1 inches (high roof);
- Cargo Space: Up to 488 cubic feet;
- Load Capacity: About 2,624 lbs;
- Gross Vehicle Weight Rating (GVWR): 9,370 lbs;
- Gross Combined Weight Rating (GCWR): 11,023 lbs.
Range and Charging:
- Estimated range of about 297 miles (113 kWh battery) and 204 miles (81 kWh battery). The range can be affected by load, driving conditions, and driver behavior
- Charging time:
- AC Charging: With a Level 2, 240V charging station, the eSprinter will fully charge in about 12.5 hours using the 113 kWh battery and in 10 hours using the 81 kWh battery.
- DC Fast Charging: At a charging power of 115 kW, it will charge from 10% to 80% in about 42 minutes for the 113 kWh battery and just over 30 minutes for the 81 kWh battery.
Safety and Technology:
Standard Features:
- Active Brake Assist (emergency braking)
- Blind Spot Assist
- Attention Assist
Optional Features Available:
- Active Distance Assist DISTRONIC
- Traffic Sign Assist
- Active Lane-keeping Assist
- Parking Package with 360-degree Camera
- Digital rearview mirror with HDR camera
Interior and Cargo Space:
- Seating: Standard fabric or optional leatherette with configurations for two individual seats or a front bench seat for three occupants.
- Infotainment: MBUX system with navigation incorporating Electric Intelligence for real-time range and charging management.
- Cargo Area: Up to 488 cubic feet, with floor length of 3,397 mm and roof height of 2,079 mm for convenience in loading and unloading.
TCO and Warranty:
Battery Certificate: Battery covered for eight years or 100,000 miles, whichever comes first, with at least 70% of the initial capacity guaranteed. Optional extended coverage increases to 185,000 miles for an additional eight years.
Metris Passenger Van
The Mercedes-Benz Metris Passenger Van, fairly unique in the mid-size segment, offers a reliable option that can comfortably accommodate up to eight passengers. With a practical and luxurious approach to family and business transport, the Metris features a spacious interior with advanced safety technology and an efficient workhorse engine to set itself apart.
Key Specifications:
- Engine: 2.0L turbocharged 4-cylinder gasoline engine
- Horsepower: 208 hp at 5,500 rpm
- Torque: 258 lb-ft between 1,250-4,000 rpm
- Transmission: 9G-TRONIC 9-speed automatic
- Wheelbase: 126 in.
- Overall Length: 202.4 in.
- Overall Width Excluding Mirrors: 75.9 in.
- Height: 74.4 in.
- Seating Capacity: Up to 8 passengers
- Cargo Volume: 37.43 cubic feet
- Payload Capacity: 1,720 lbs
- Towing Capacity: Up to 5,000 lbs
- Fuel Tank Capacity: 18.49 gallons
- Ground Clearance: 3.8 in.
- Turning Radius (Wall-to-wall): 38.7 ft
- Turning Radius (Curb-to-curb): 36.4 ft
Interior Features
- Seating Arrangement: Three rows with flexible configurations
- Trim: Tough cloth or optional vinyl
- Flooring: Sturdy rubber or carpet alternatives
- Technology: 7-inch touchscreen infotainment system with Bluetooth connectivity, USB ports, and optional integration for Apple CarPlay and Android Auto
- Safety Features: Rearview camera standard; available Blind Spot Assist, Lane Keeping Assist, and Active Distance Assist DISTRONIC.
Performance and Efficiency:
- Fuel Economy: Gasoline engine works excellently in urban and highway driving conditions
- Service Interval: Up to 15,000 miles between maintenance intervals

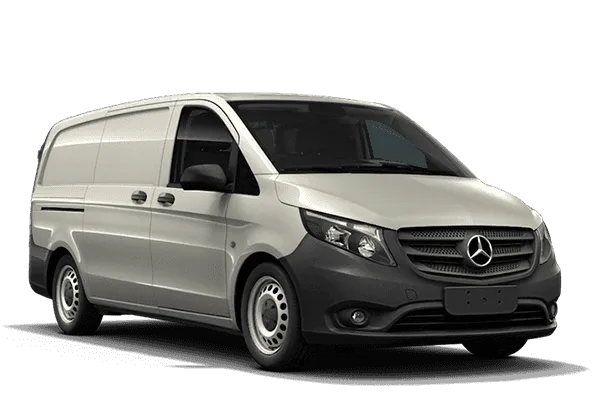

Metris Cargo Va
The Mercedes-Benz Metris Cargo Van is an adaptable and efficient commercial vehicle engineered to meet business demands requiring a truly worthy transport solution. With a practical and spacious cargo area, a hardy performance platform, and advanced safety features, it stands out as an outstanding vehicle for professionals who appreciate functionality and comfort in their work.
Key Specifications:
- Engine Type: 2.0-liter turbocharged inline-4 gasoline engine
- Horsepower: 208 hp at 5,500 rpm
- Torque: 258 lb-ft at 1,250-4,000 rpm
- Transmission: 9-speed automatic
- Drivetrain: Rear-wheel drive
- Towing Capacity: Up to 5,000 lbs
- Fuel Economy: 19 mpg city / 23 mpg highway
Dimensions:
- Wheelbase Options: 126 inches (SWB) and 135 inches (LWB)
- Overall Length: 202.4 inches (SWB) / 211.4 inches (LWB)
- Width-excluding-mirrors: 75.9 inches
- Height: 75.2 inches
- Cargo Volume: 182.9 cu ft (SWB)/199.2 cu ft (LWB)
- Payload Capacity: Up to 2,205 lbs
Interior and Additional Features:
- Seating Capacity: 2 passengers
- Standard Features: air conditioning, power windows, remote keyless entry, Bluetooth connectivity, and 7-inch touchscreen infotainment system with Apple CarPlay and Android Auto possible
Safety Features:
- Standard: Crosswind Assist, Load-Adaptive Electronic Stability Program (ESP®), Attention Assist®, Hill-Start Assist, Active Brake Assist, and rearview Camera
- Optional: Lane-Keeping Assist, Blind Spot Assist, and Active Distance Assist DISTRONIC
Warranty:
- Basic Warranty: 36 months/36,000 miles
- Powertrain Warranty: 60 months/60,000 miles
- Corrosion Perforation Warranty: 60 months/100,000 miles
- Roadside Assistance Coverage: 36 months/36,000 miles
